How to Compare BLDC Motors for Torque, Speed, and Battery Efficiency

How to Compare BLDC Motors for Torque, Speed, and Battery Efficiency

Choosing among BLDC motors is not just about reading a spec sheet.

A strong comparison balances torque, speed, and battery efficiency against the actual job.

That matters even more in industrial tools, smart hardware, and mobile devices.

A BLDC motor can look excellent on paper yet disappoint under load.

Another motor may show lower peak numbers but deliver better runtime and system stability.

This guide explains how to compare BLDC motors in a practical, decision-ready way.

The goal is simple: select the motor that creates the best total value, not just the biggest headline figure.

Start With the Application, Not the Catalog

The first mistake in BLDC motor comparison is starting from motor ratings alone.

Instead, define the duty profile of the product.

For a cordless impact wrench, burst torque and thermal recovery may dominate.

For a fan, pump, or access system, steady efficiency may matter more than peak output.

This also changes how you read speed curves and current draw.

A useful starting checklist includes:

• Required continuous torque and peak torque
• Operating speed range at real loads
• Battery voltage, current limit, and runtime target
• Ambient temperature, cooling, and enclosure restrictions
• Noise, vibration, and control precision needs

Once these points are clear, BLDC motors become easier to compare fairly.

How to Compare Torque in BLDC Motors

Torque is often the first filter because it defines usable mechanical force.

But comparing torque in BLDC motors requires more than reading one number.

You need to separate peak torque from continuous torque.

Peak torque shows short burst capability.

Continuous torque shows what the motor can sustain without overheating.

In many buying decisions, continuous torque tells the more honest story.

Key torque checks

• Torque constant, usually shown as Kt
• Current needed to achieve target torque
• Temperature rise during repeated load cycles
• Gear reduction effects on final output torque

A motor with higher torque per amp can reduce battery stress.

That can also reduce heat in wiring, controller, and battery pack.

In actual systems, this often matters more than a dramatic peak torque claim.

When comparing BLDC motors, always request torque curves across the working speed range.

Speed Comparison Means More Than Maximum RPM

Maximum RPM is useful, but it rarely decides the best BLDC motor alone.

The bigger question is how stable speed remains under load.

That reveals how the motor behaves in real work, not in free-spin conditions.

For drilling, cutting, fastening, and pumping, loaded speed matters more than no-load speed.

A useful comparison looks at three zones.

1. No-load speed, which indicates top-end potential
2. Nominal loaded speed, which shows practical productivity
3. Speed drop at increasing torque, which shows motor stiffness

BLDC motors with better speed regulation usually support smoother operation and cleaner output quality.

This becomes important in controlled fastening, biometric mechanisms, and smart actuators.

If the application uses a controller with advanced commutation, compare motor and controller as a matched pair.

Battery Efficiency Is a System-Level Decision

Battery efficiency is where many BLDC motor decisions become expensive.

A motor may achieve strong output by pulling aggressive current.

That can shorten runtime, increase pack temperature, and accelerate battery aging.

So, the right comparison focuses on watt-hours converted into useful work.

What to measure

• Efficiency at low, medium, and high load points
• Current draw at the target duty cycle
• Heat buildup in motor and controller
• Runtime per battery pack under repeatable test conditions

The best BLDC motors often operate near their efficiency sweet spot during normal use.

That reduces wasted energy as heat.

It also supports smaller cooling solutions and more compact tool design.

In cordless products, battery efficiency is often the hidden factor behind better user experience.

Use a Simple Comparison Table Before Final Selection

A structured table makes BLDC motor evaluation faster and more objective.

It also helps prevent one impressive value from distorting the decision.

This kind of scorecard is especially helpful when several stakeholders influence the final decision.

Watch the Hidden Variables Behind BLDC Motor Performance

Not all BLDC motors are tested under the same assumptions.

That is why direct spec-sheet comparison can be risky.

Several hidden variables can reshape results:

• Magnet grade and rotor design
• Copper fill, winding method, and resistance
• Sensor or sensorless control strategy
• Controller tuning and switching efficiency
• Cooling path, housing material, and airflow

From recent market changes, integrated motor-drive matching has become a stronger signal.

This means the most efficient choice may not be the motor with the highest standalone rating.

It may be the motor that works best with the intended battery, gearbox, and controller architecture.

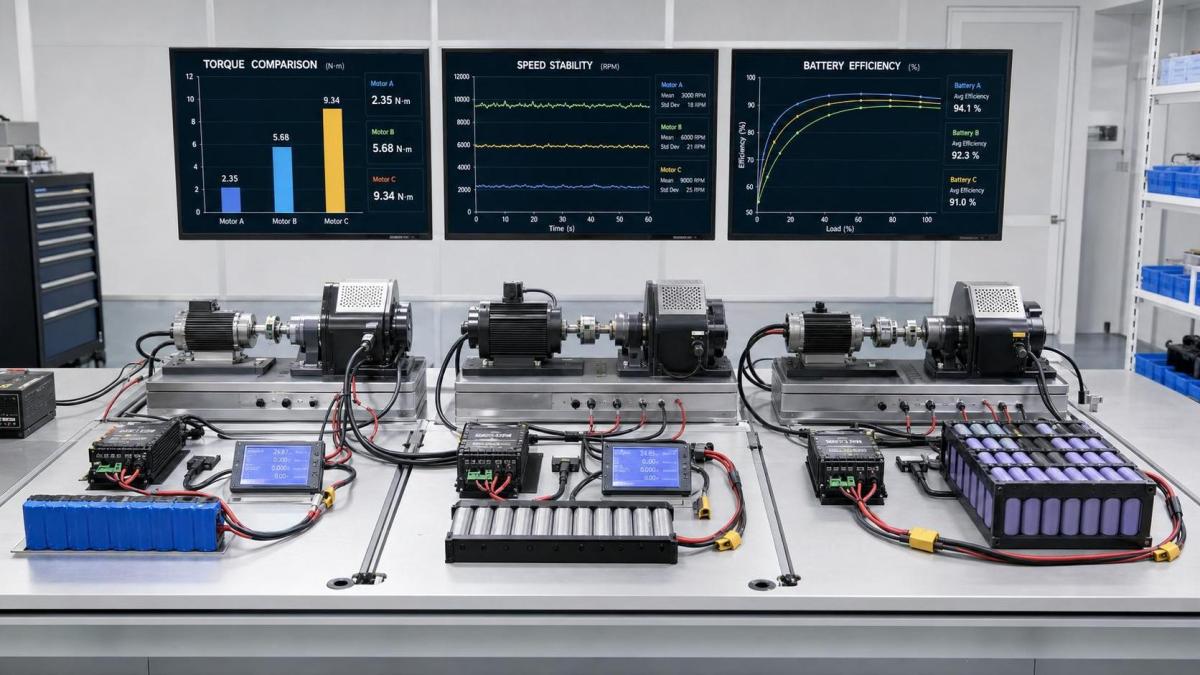

A Practical Test Method for Fair BLDC Motor Evaluation

If the decision carries cost or safety impact, bench testing is worth the effort.

Keep the method simple and repeatable.

1. Use the same battery chemistry and state of charge
2. Apply the same load profile to each BLDC motor
3. Record torque, speed, current, voltage, and temperature
4. Measure runtime until the same cutoff condition
5. Repeat enough cycles to capture thermal behavior

This approach quickly shows whether a BLDC motor performs consistently or only flashes high output for short periods.

It also makes supplier discussions more concrete because the comparison is tied to application evidence.

How to Make the Final Decision

The best BLDC motors are not universally the fastest or the strongest.

They are the ones that match the real operating window.

If uptime and repeatability matter most, favor stable continuous torque and thermal control.

If portability matters most, prioritize battery efficiency and torque per amp.

If process output matters most, compare loaded speed stability and controller response.

That is the real advantage of comparing BLDC motors through system behavior.

It reduces selection risk and improves long-term product economics.

Before locking the final choice, score each option by weighted priorities.

Then validate the leading BLDC motor in one realistic application test.
